HC05BX64 adapter

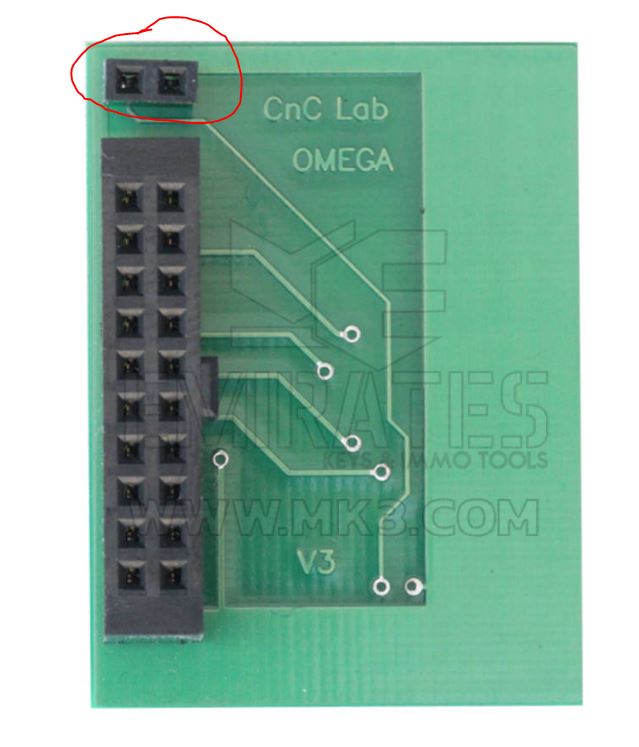

Bought an Orange5 a few months ago and the HC05BX64 adapter that came with it wont read any micro's. However if I use the one from my old Omega MTRK it reads fine. I have noticed that some adapters being sold seem to have an extra separate 2 pins on the end of the plug whereas my Orange5 adapter doesn't have them. Has the adapter been updated?


Use in conjuntion with the HC05B-705B Motorola board (double socket)

HC05B-705B Orange-5 Main Adaptor
